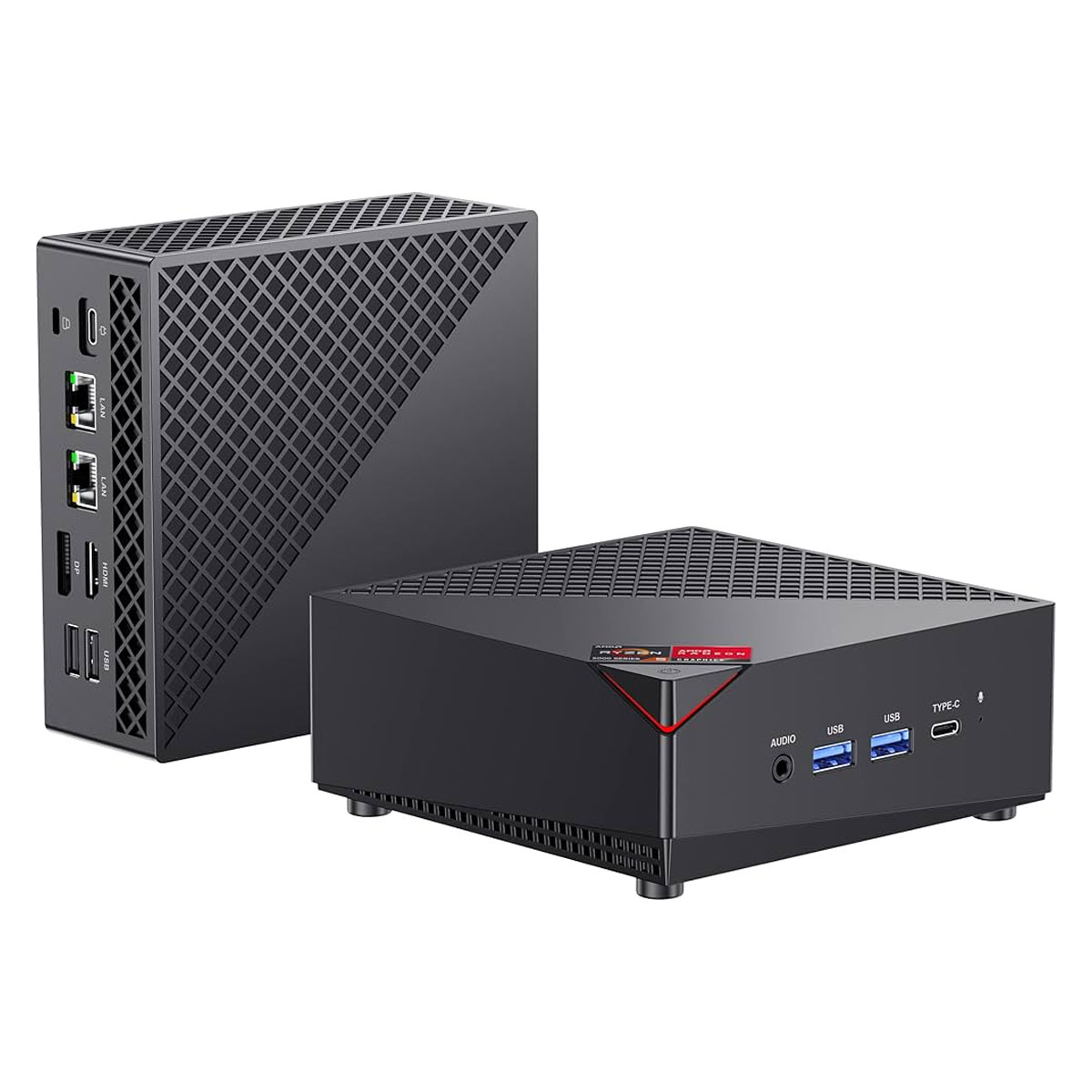

ACEMAGIC AM06 Pro Mini PC with AMD Ryzen 7 5700U processor, 16 GB DDR4 RAM, 512 GB SSD and triple 4K display support. It delivers smooth multitasking and efficient performance in a compact design. Users enjoy quiet operation along with versatile connectivity options including dual Ethernet and multiple USB ports.
About ACEMAGIC AM06 Pro
The ACEMAGIC AM06 Pro delivers strong everyday performance thanks to its AMD Ryzen 7 5700U processor. This chip brings 8 cores and 16 threads with a base frequency of 1.8 GHz and turbo boost up to 4.3 GHz plus 8 MB L3 cache. People enjoy smooth multitasking and responsive applications because the processor shares power efficiently on a 7 nm process. Integrated AMD Radeon RX Vega 8 graphics add capability for video playback and casual games without extra hardware.
Memory and storage in the ACEMAGIC AM06 Pro give users room to grow their setup over time. Dual channel DDR4 RAM supports upgrades to 64 GB through two SODIMM slots while the included 512 GB M.2 NVMe SSD provides fast boot times and file access. An extra slot for a 2.5 inch SATA drive lets owners add more storage without complicated tools. This flexibility means the system stays useful longer as needs change.
Connectivity options on the ACEMAGIC AM06 Pro make it versatile for home or office networks. Dual Ethernet ports deliver one 1 GbE and one 2.5 GbE LAN connection for stable wired performance. Triple 4K display support comes through HDMI, DisplayPort, and USB C ports so users can connect multiple monitors easily. Front and rear USB ports along with WiFi and Bluetooth complete a full set of modern connections.
The compact design of the ACEMAGIC AM06 Pro fits almost anywhere while staying quiet during use. Its small 5 by 5 by 2 inch size works well on desks or behind monitors. An efficient cooling system with a single heat pipe keeps temperatures under control without loud fans. USB C power delivery simplifies setup and the Kensington lock adds peace of mind for shared spaces.
Windows 11 Pro comes pre installed on the ACEMAGIC AM06 Pro so users start working right away. Easy internal access allows quick upgrades to RAM, storage, or the wireless module whenever needed. The overall build supports straightforward maintenance that saves time and effort over the life of the device.
Specifications
| Specification | Value |
|---|---|
| Processor | AMD Ryzen 7 5700U |
| Cores / Threads | 8 / 16 |
| Base / Boost Frequency | 1.8 GHz / 4.3 GHz |
| Graphics | AMD Radeon RX Vega 8 |
| Memory | 16 GB DDR4 |
| Storage | 512 GB M.2 NVMe SSD |
| Display Output | Triple 4K |
| Ethernet Ports | 1x 1 GbE + 1x 2.5 GbE |
| Wireless Connectivity | WiFi + Bluetooth |
| Power Delivery | USB-C |
| Dimensions | 5 x 5 x 2 inches |
| Operating System | Windows 11 Pro |
| Price | $239 |
Reviews
Running multiple programs feels quick on this compact mini PC. The dual Ethernet ports help with my home network setup and the triple display support makes work much easier. Quiet fans keep things peaceful during long sessions.
Upgraded the RAM easily and now everything runs even smoother for video editing. The processor handles daily tasks without any lag and the small size fits perfectly on my desk. Bluetooth connection works great with my peripherals.
Streaming and light gaming perform better than expected in such a tiny package. Dual monitors look sharp at 4K and the storage speed helps load files fast. Overall it brings solid value for everyday use.
